Black PVC Sleeve

To order: REF. + L (mm)
e.g. GFX144/16L4650

		S
REF.	MM	MM
GFX144/16	16	1
GFX144/20	20	1
GFX144/24	24	1
GFX144/26	26	1
GFX144/29	29	1
GFX144/31	31	1
GFX144/33	33	1
GFX144/36	36	1
GFX144/42	42	1
GFX144/45	45	1

Black Polyurethane Sleeve

To order: REF. + L (mm)
e.g. GFX155/14L4650

		S
REF.	MM	MM
GFX155/14	14	0,5
GFX155/16	16	0,5
GFX155/18	18	0,5
GFX155/20	20	0,5
GFX155/23	23	0,5
GFX155/26	26	0,5
GFX155/29	29	0,5
GFX155/36	36	1
GFX155/42	42	1
GFX155/45	45	1

Textile Sleeve

To order: REF. + L (mm)
e.g. GFX166/17L4650

		S
REF.	MM	MM
GFX166/17	17	0,9
GFX166/20	20	0,9
GFX166/23	23	0,9
GFX166/25	25	0,9
GFX166/27	27	0,9
GFX166/31	31	0,9
GFX166/33	33	0,9
GFX166/36	36	0,9
GFX166/40	40	0,9
GFX166/43	43	0,9
GFX166/47	47	0,9
GFX166/53	53	0,9
GFX166/55	55	0,9
GFX166/60	60	0,9
GFX166/66	66	0,9
GFX166/85	85	0,9

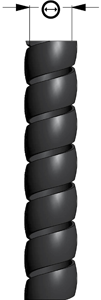

Polypropylene Spiral Wrap

To order: REF. + L (mm)
e.g. GFX111/12L4650

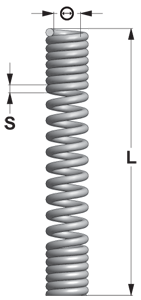

Round Metal Spring Guard

To order: REF. + + L (mm)
e.g. GFX023204560

Flat Section Metal Guard

To order: REF. + L (mm)
e.g. GFX034/13L4650

		S1	S
REF.	MM	MM	MM
GFX034/13	13	7	0,8
GFX034/15	15	7	0,8
GFX034/17	17	7	0,8
GFX034/19	19	7	0,8
GFX034/21	21	7	0,8
GFX034/23	23	7	0,8
GFX034/26	26	7	0,8
GFX034/29	29	7	0,8
GFX056/29	29	13	1
GFX056/31	34	13	1
GFX056/34	34	13	1
GFX056/41	41	3	1
GFX056/49	49	13	1
GFX056/51	51	13	1
GFX056/54	54	13	1
GFX056/60	60	13	1
GFX056/68	68	13	1

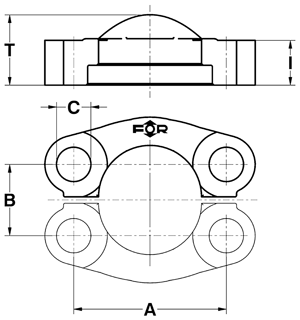

SAE Split Flanges

		REF.	A	B	C	I	T
Average Pressure SAE 3000 PSI	1/2	A401007-12	38,10	17,48	9	13	19
	3/4	A401007-19	47,63	22,23	11	14	22
	1"	A401007-25	52,37	26,19	11	16	24
	1"1/4	A401007-32	58,72	30,18	11,5	14	22
	1"1/2	A401007-38	69,85	35,71	13,5	16	25
	2"	A401007-51	77,77	42,88	13,5	16	26
High Pressure SAE 6000 PSI	1/2	A401502-12	40,49	18,24	9	16	22
	3/4	A401502-19	50,80	23,80	11	19	28
	1"	A401502-25	57,15	27,76	13	24	33
	1"1/4	A401502-32	66,68	31,75	15	27	38
	1"1/2	A401502-38	79,38	36,50	17	30	43
	2"	A401502-51	96,82	44,45	21	37	53
