3 AND 4 BOLTS FLANGE PORTS



dimensioni nominali

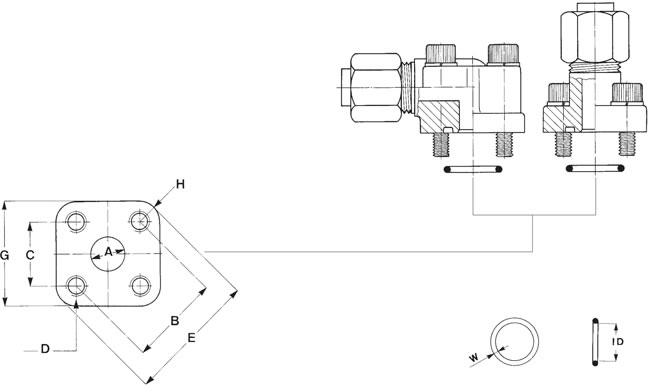

ports nom. dims.		 10 12 15 20 25 26 31 32 40
A max. 10 12 15 20 25 26 31 32 40
B ±0,2 26 30 35 40 51 55 61 62 72,5
C ±0,2 18,38 21,21 24,75 28,28 36,06 38,89 43,13 43,84 51,26
D metric m5 m6 m6 m6   m8 m10 m10 0
D metric   m8 m8 m8 m10     m12 m12
E   39 47 52 57 73 73 87 87 98
G min. 31,5 38 42 45 58 58 68 68 76
H raggio
radius		 6,5 8,5 8,5 8,5 11 9 12,5 12,5 12,5
  i.d. 13,1 15,08 18,72 23,81 31,42 32,92 37,69 37,69 46,04
*o.ring w 2,62 2,62 2,62 2,62 2,62 3,53 3,53 3,53 3,53
  codice
code		 0-26131 0-26151 0-26187 0-26238 0-26314 0-35329 0-35377 0-35377 0-35460
*Standard O-ring: NBR °SHORE-A 85 +5/-0 (Max. temp. rang. -20°C +120°C).
Additional compounds available on request. For special applications, please contact our technical department.
